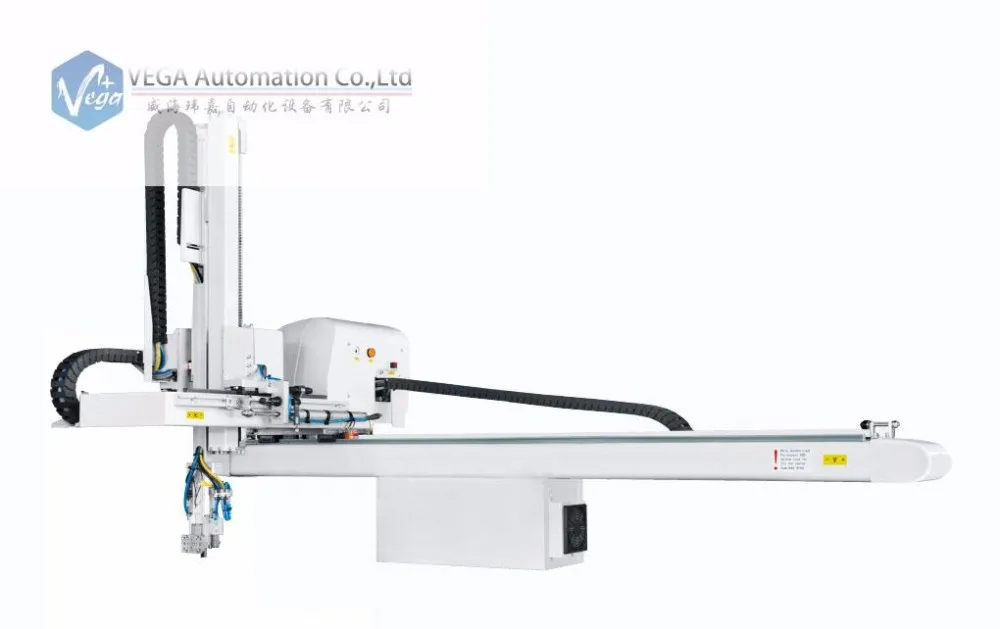

Economic Ac Servo Traversing industrial CNC robot arm VG series

FOB Reference Price:Get Latest Price
US $800-7,500 / Acre | 1 Acre/Acres (Min. Order)
Supply Ability:
100 Acre/Acres per Month
Port:
QINGDIAO
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Elevation Speed:
0.9M/S
Vertical Travel(mm):
1200MM
Horizonal Travel(mm):
1600mm
Application:
Pick and Place
Place of Origin:
Shandong, China (Mainland)
Brand Name:
VEGA
Model Number:
VGBE-1200WP/WS
Weight:
275kg
Dimension(L*W*H):
2340*1650*1410 mm
Power(W):
0.9 KVA
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
CNC ROBOT ARM:
servo motor robot arm
Packaging & Delivery
Packaging Details

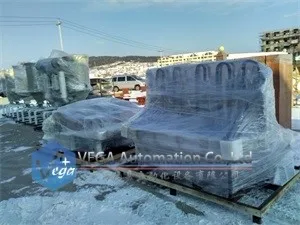

Plastic Injection Molding Robotic Arm packing: wooden case and plastic stretch film
Delivery Time
Robotic Arm: within 1 months after payments
Product Description

                                          Equipment Specification Parameter

                                       Model Number
                   (Single axis AC Servo Traversing Robot)

          VGBE-1200WP/WS
Recommended Horizontal I.M.M
220ton-500ton
Power Supply
AC220V±10%,50/60Hz
Power Source
0.9kVA
Working Pressure
5kgf/cm2(0.5MPa)
(Clean air with no moisture or dust)

Max allowable air pressure
7kgf/cm2(0.7Mpa)



Drive Mode
Vertical (Up and Down)
AIR CYLINDER
Crosswise(Front and Back)
AIR CYLINDER
Transverse portion
AC SERVO MOTOR
Posture
AIR CYLINDER



MAX Travel
(mm)


Vertical
Product Arm
1200
Runner Arm
1250


Product Arm
300
Runner Arm
125
Traverse
1600
Postur(°)
0°~90°
MAX Loading (Chuck unit included) kg
5
Air Consumption(Nl/Cycle)
63
Full Cycle Time(sec)
12

VGBE-1000/1200

CNC ROBOT ARM

1. The robot has long stroke. So it needs to be fixed in high workshop.
2. Servo robot adopts servo motor, high speed and positioning accuracy.
3. Adopting the imported elements, which are durable, stabile and safety performance.
4. High speed robot arm and single-stage operation of the arm
5. Arm is adopted strong aluminum and precision linear guide. Light weight, good rigidity, low friction, long life.
6.Gripper can turn 90°, which can coordinate with fix mold and mobile mole to take out the products.

7. Using self-lubricated rack and belt made in Germany, which is high efficient and long life.


Main Features:

CNC ROBOT ARM

Denote: W: Telescopic type
               D: Product arm + Runner arm
               S: Product arm
               Y: AC Servo driven on traverse axis


Advanced Processing Equipment:

Company use advanced laser cutting machine, large gantry machining center, large CNC machining centers, CNC bending machines, cutting machines, CNC lathe, milling machine, surface grinding machine etc. ensure the machining precision and quality.

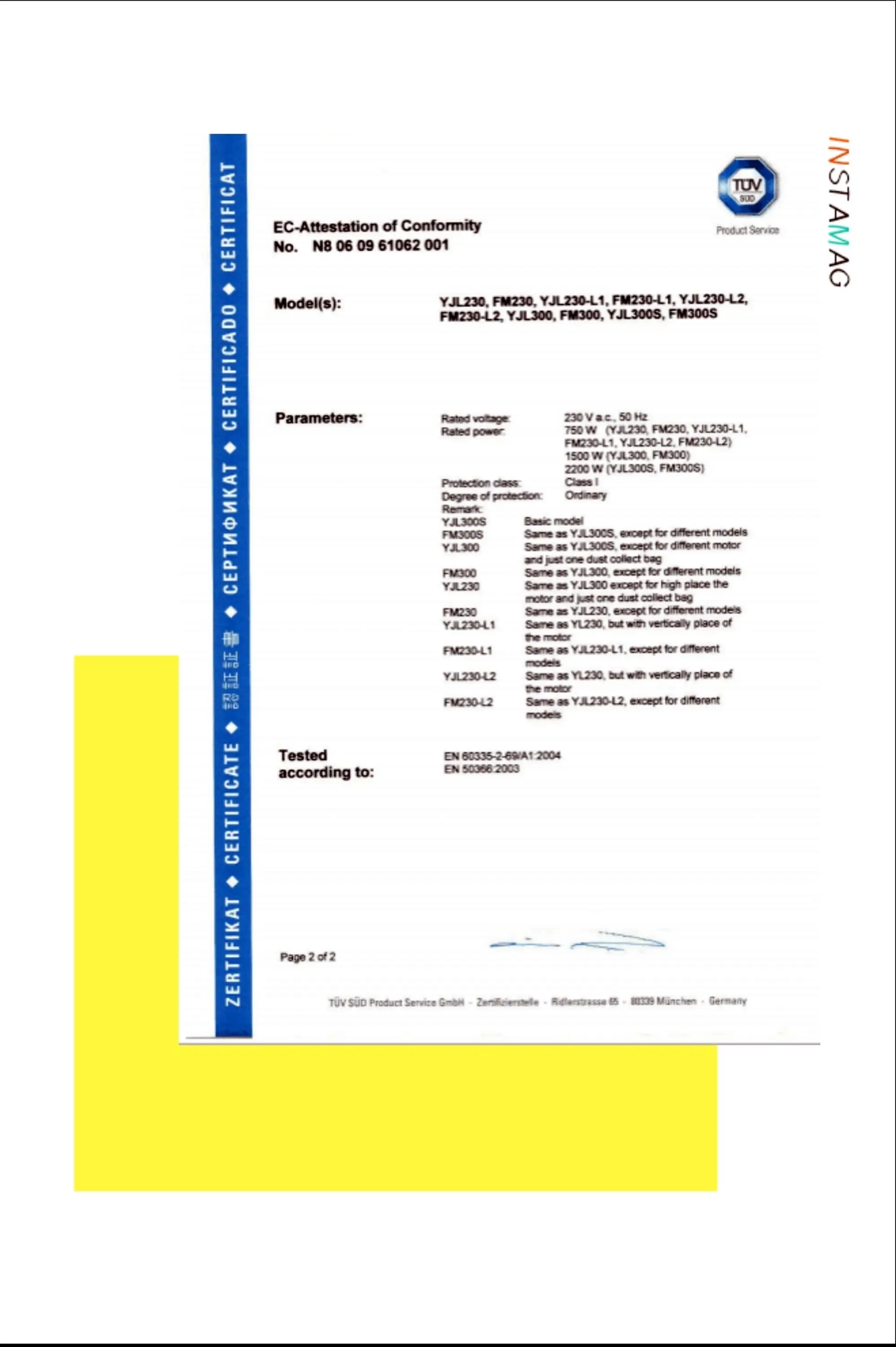

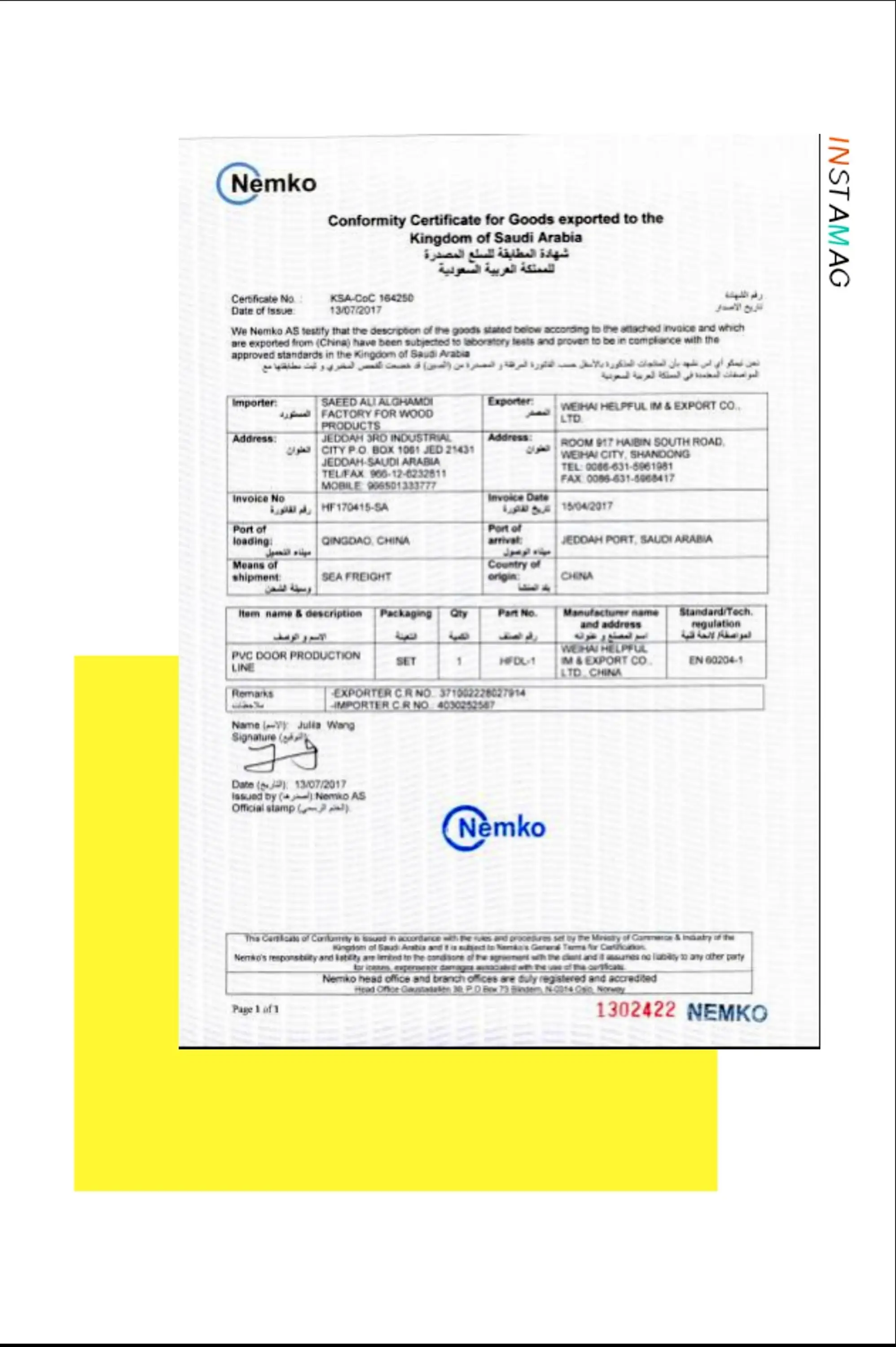

Certificates
Our service
Related products
Packing & Delivery
Company and Factory
Product Description

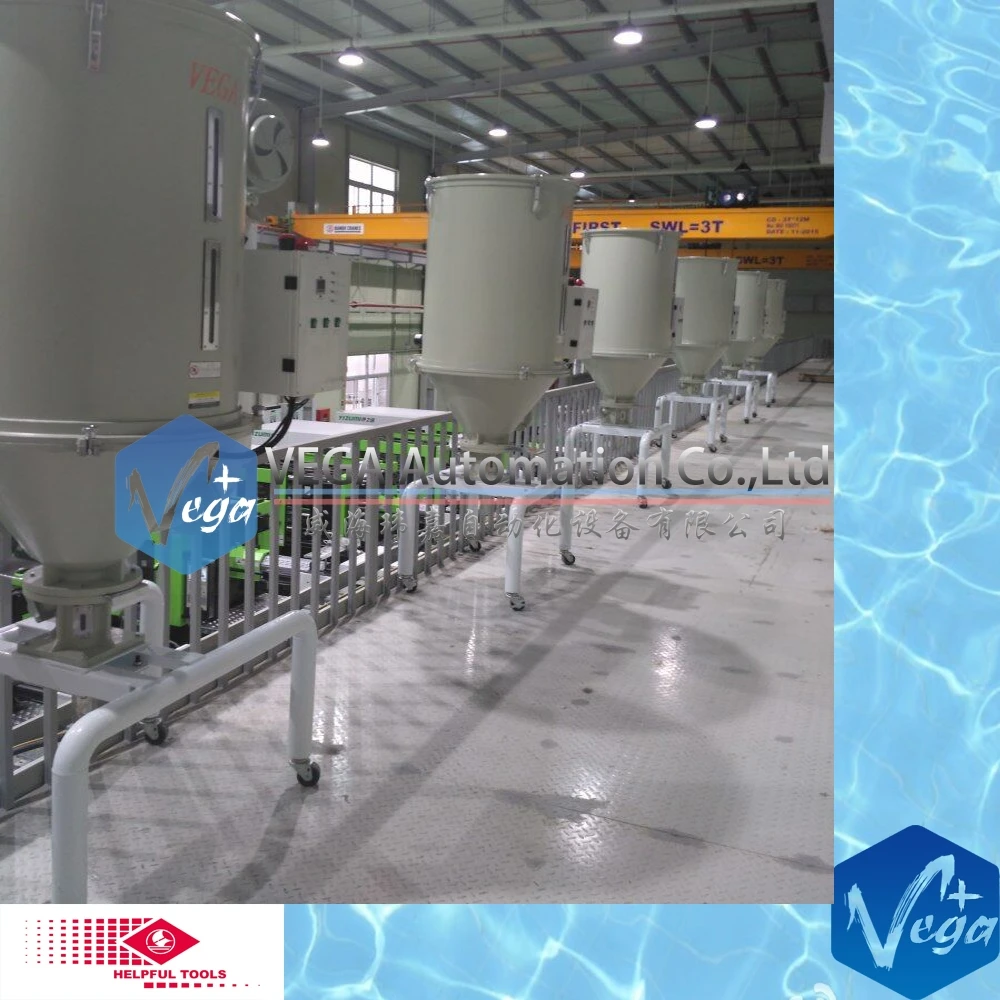

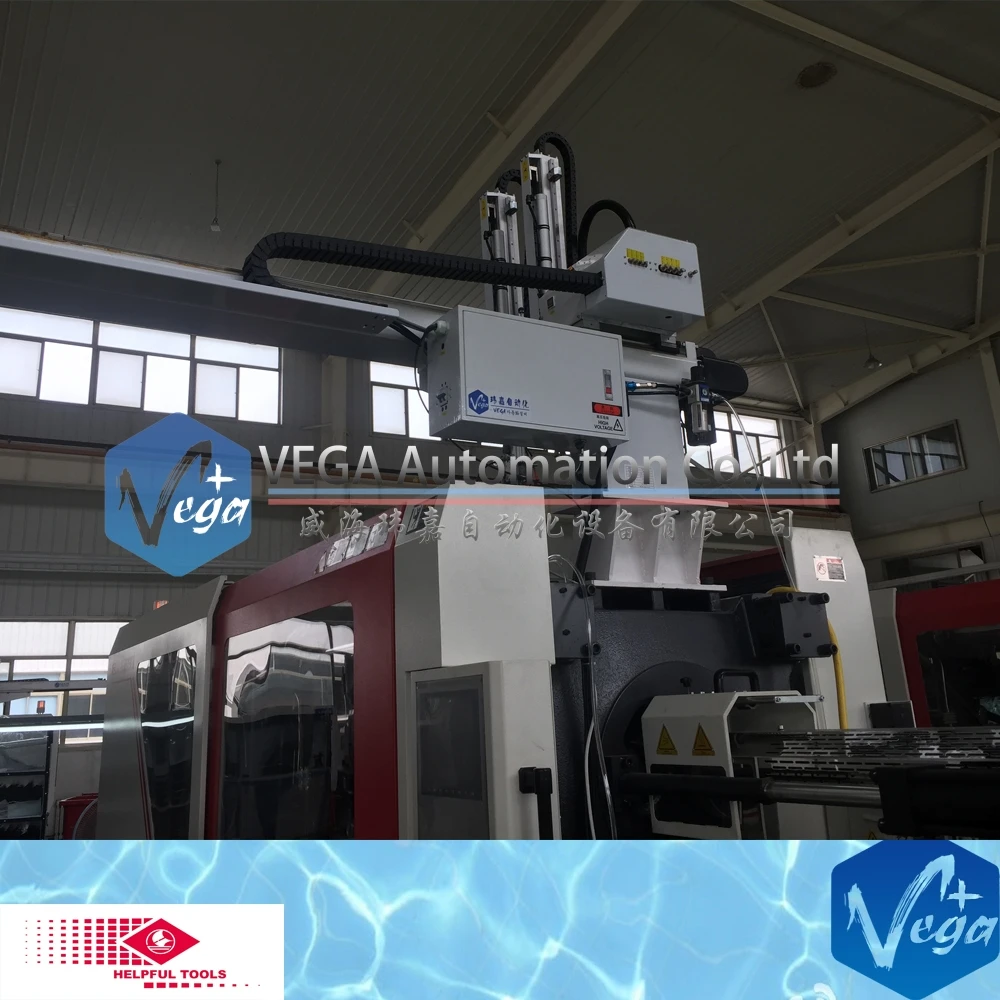

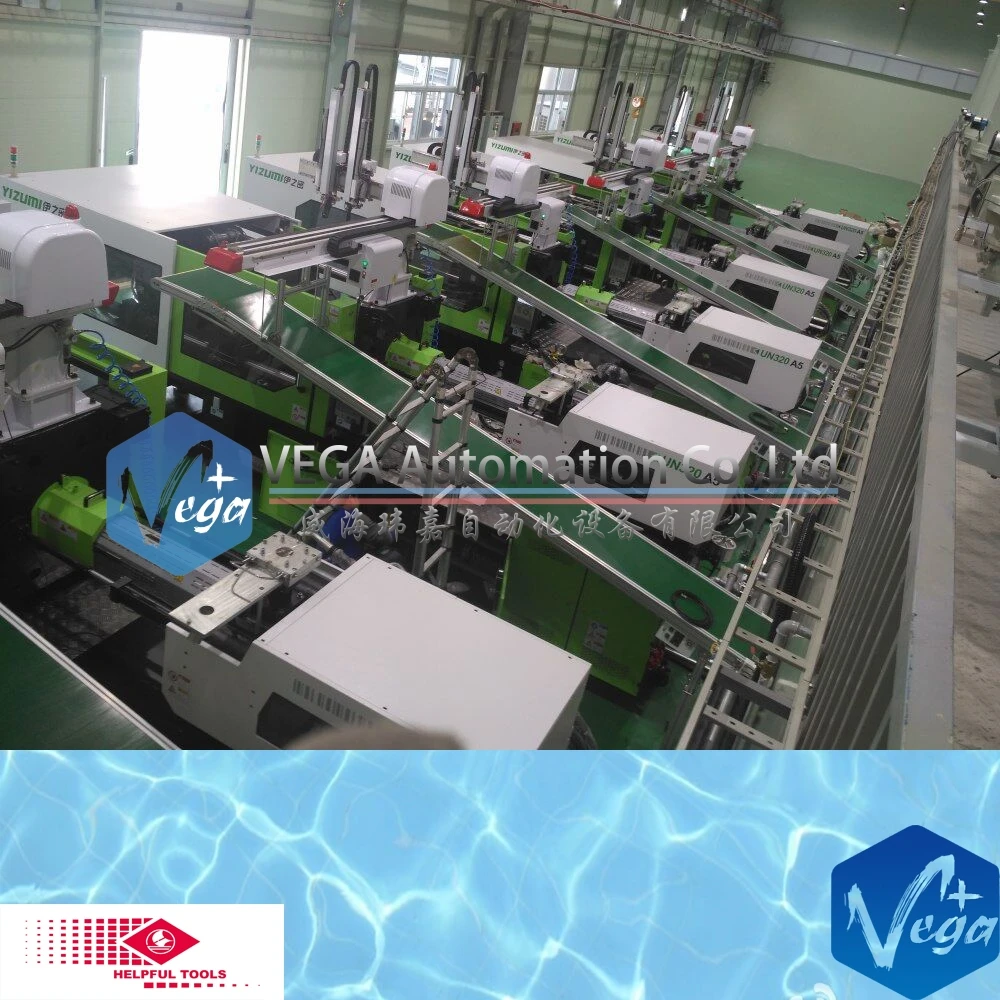

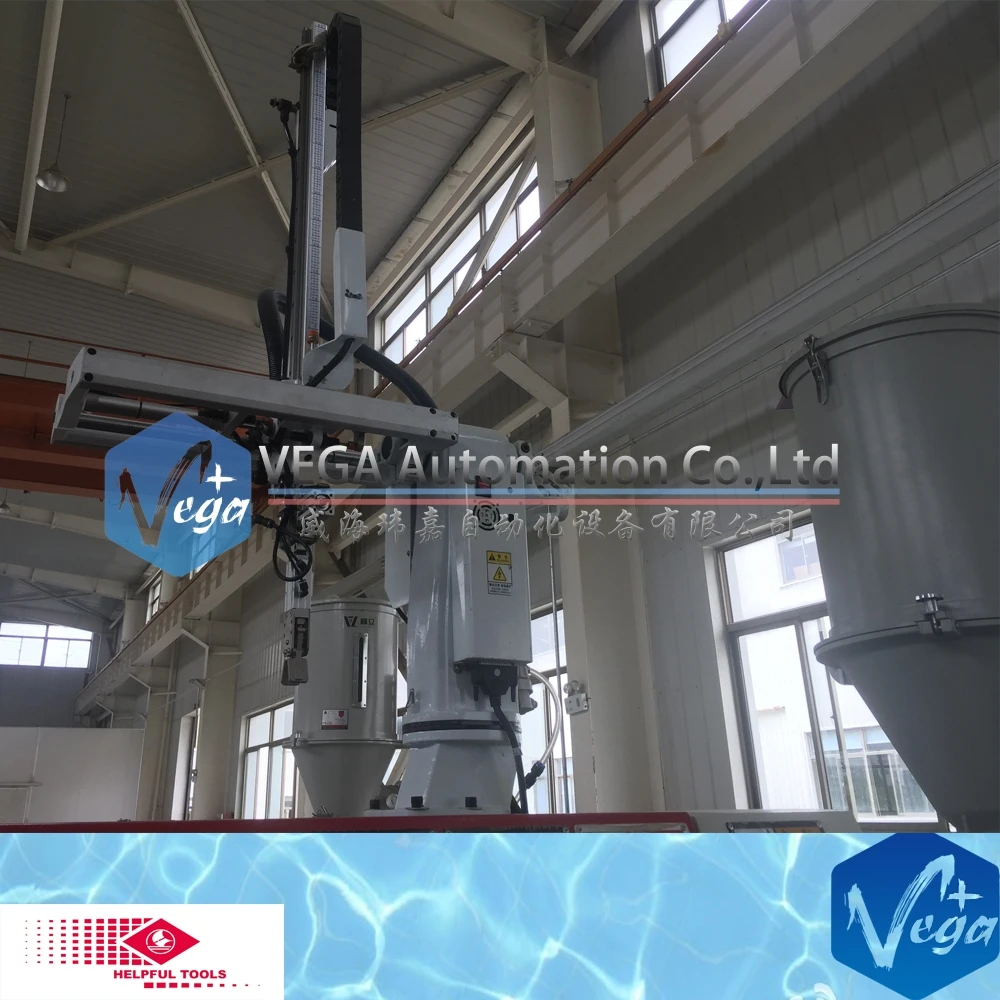

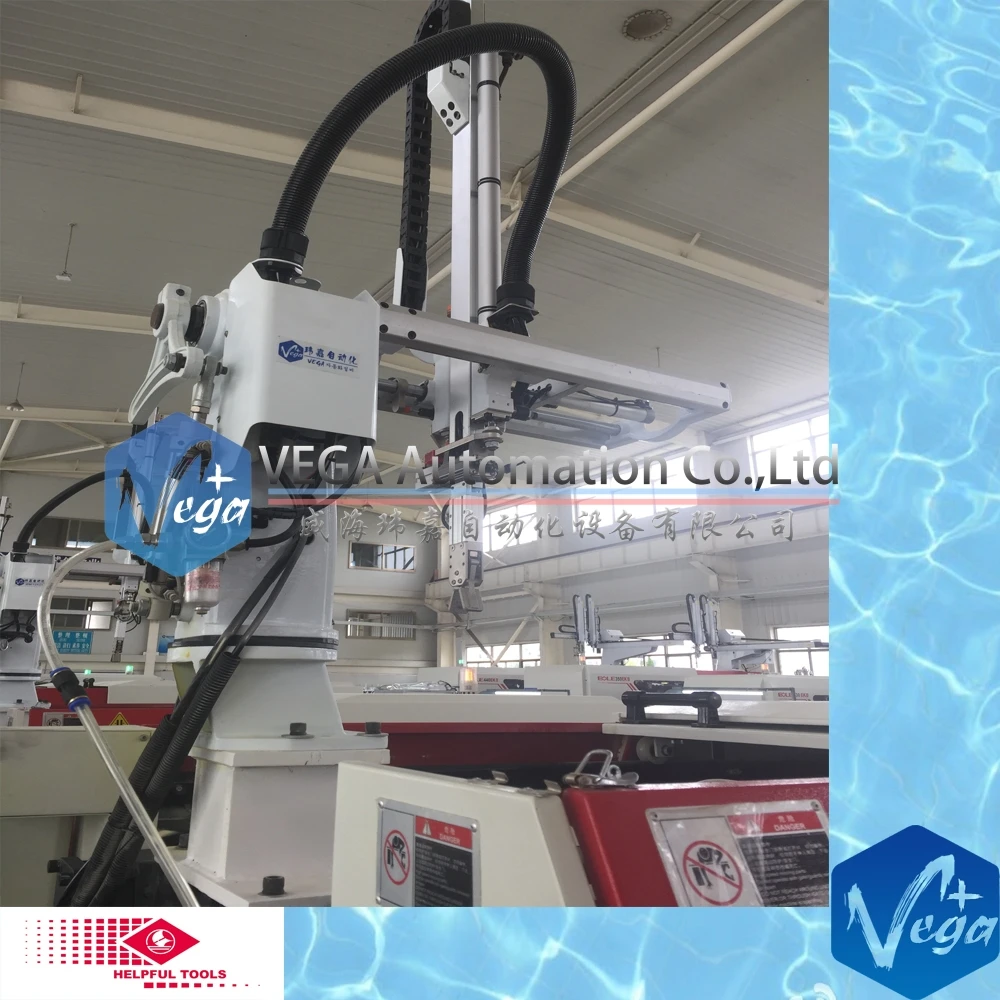

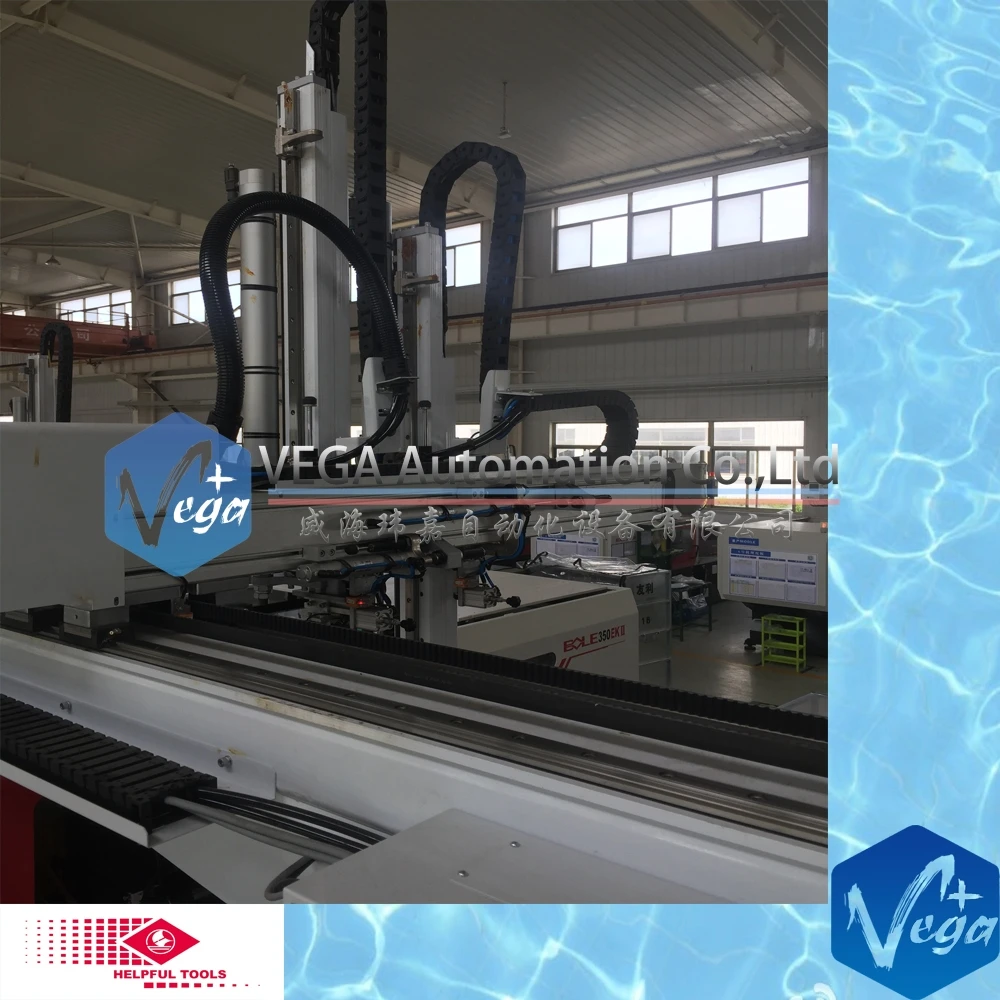

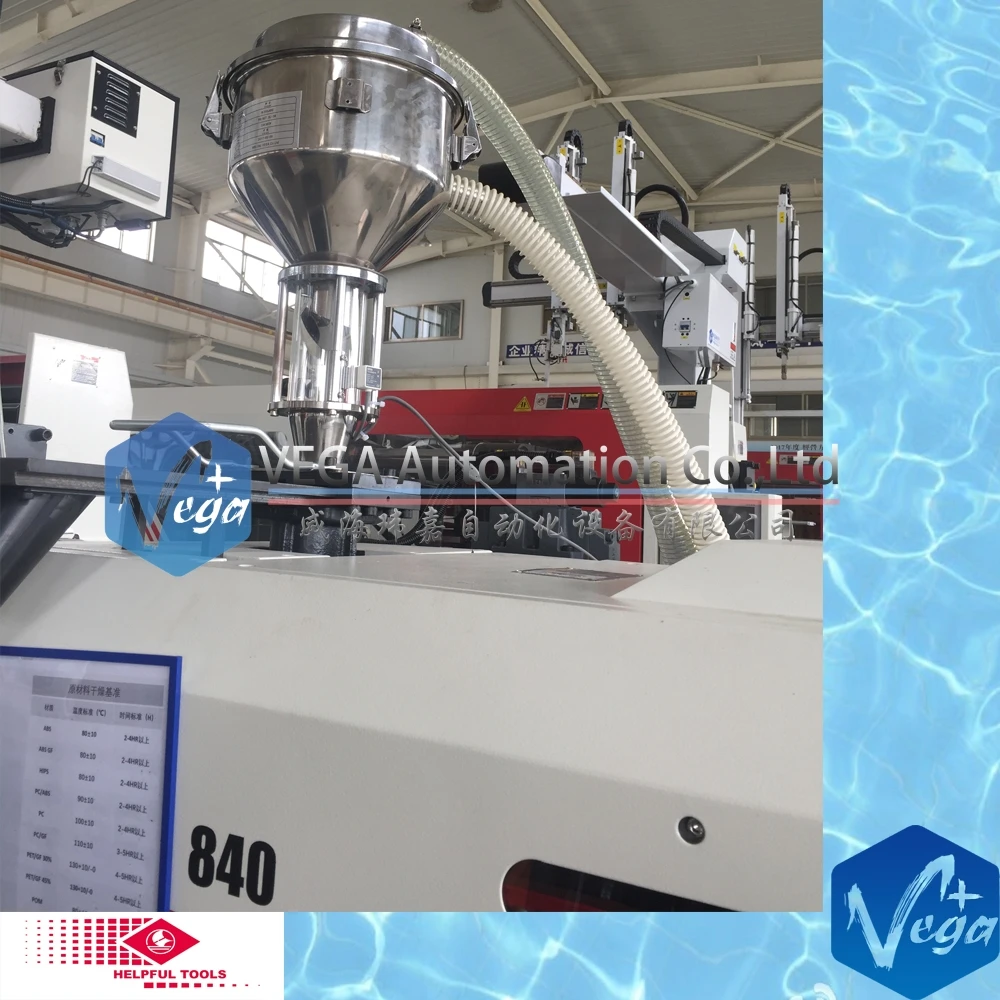

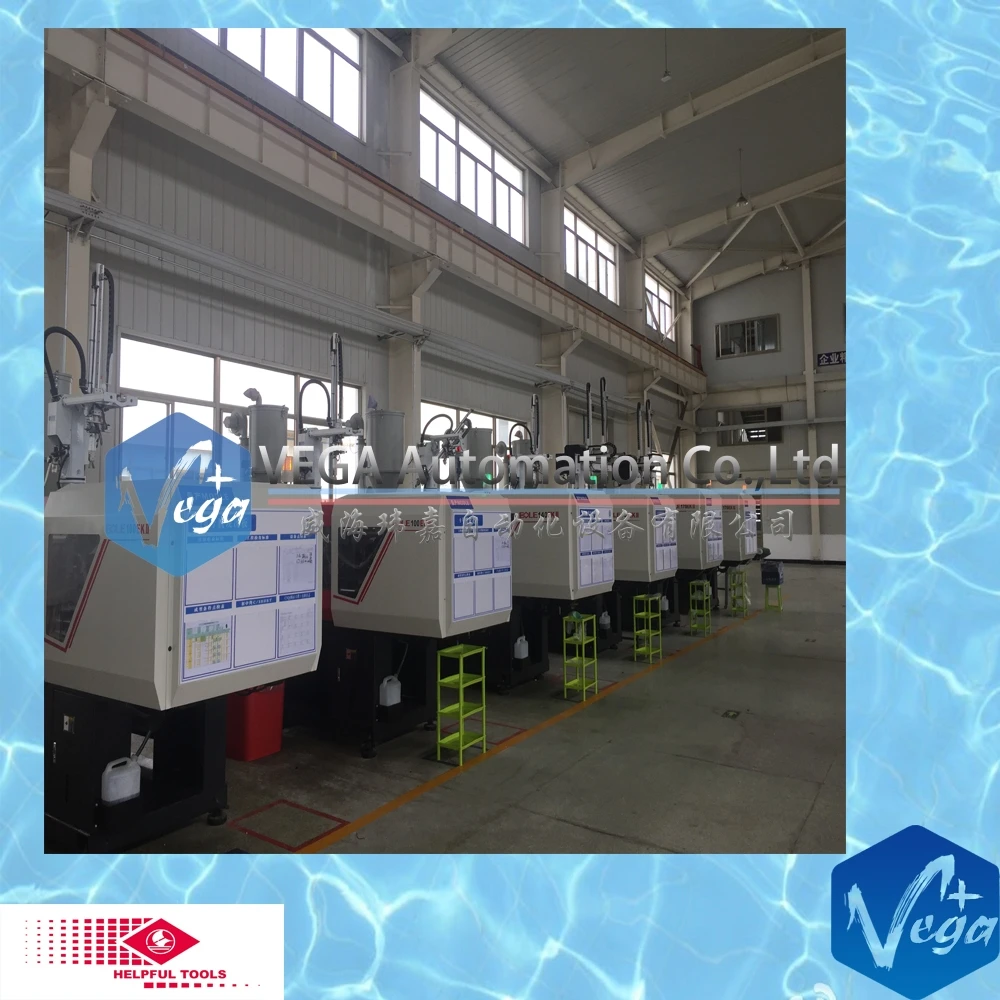

Customers Application Cases:
